Caja plastico para proyectos 102x60x30mm resistente y hermética para electrónica

Impact-resistant polystyrene is used because of its balance between cost, low weight and good rigidity and electrical insulation properties. Compared with ABS or polycarbonate, this material is less resistant to UV rays and high temperatures, but it is more economical and sufficient for indoor applications that do not require extreme protection.

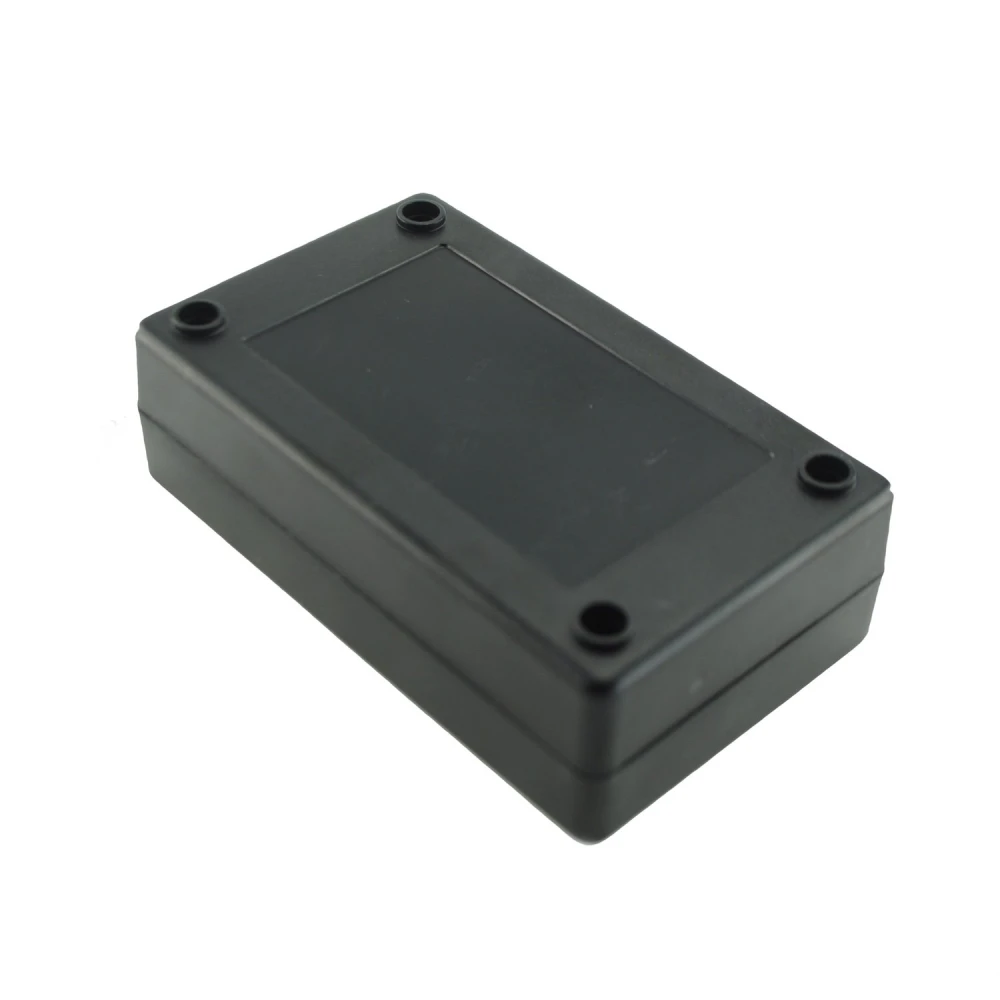

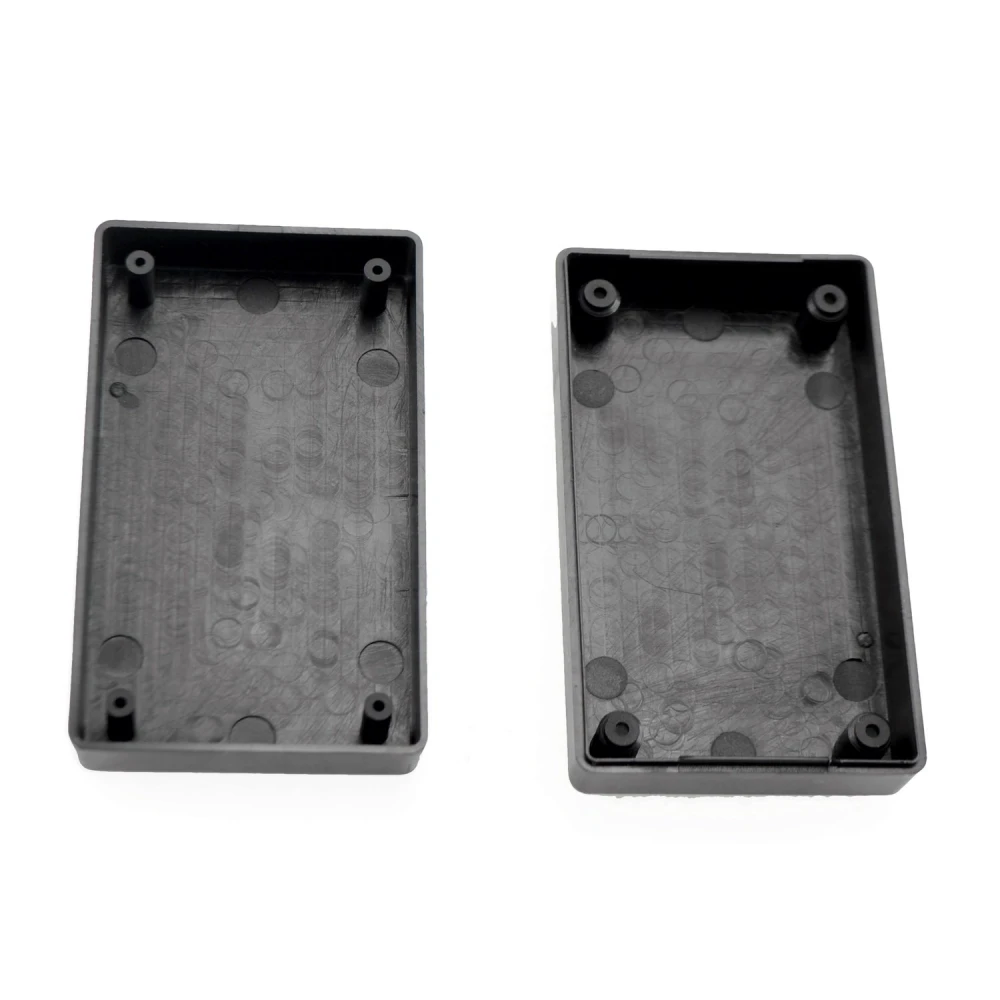

The case has external dimensions of 102 mm x 60 mm x 30 mm, but the usable internal space is approximately 96 mm x 54 mm x 26 mm, taking into account 3 mm walls and some tolerance for the sealed closure system. This calculation may vary slightly depending on the exact model.

When drilling impact-resistant polystyrene, use low-speed drill bits and moderate pressure to avoid cracks. It is recommended to mark the area, hold the case firmly and avoid overheating. Any additional opening will remove the original seal, so the holes should be sealed with cable glands or a suitable sealant.

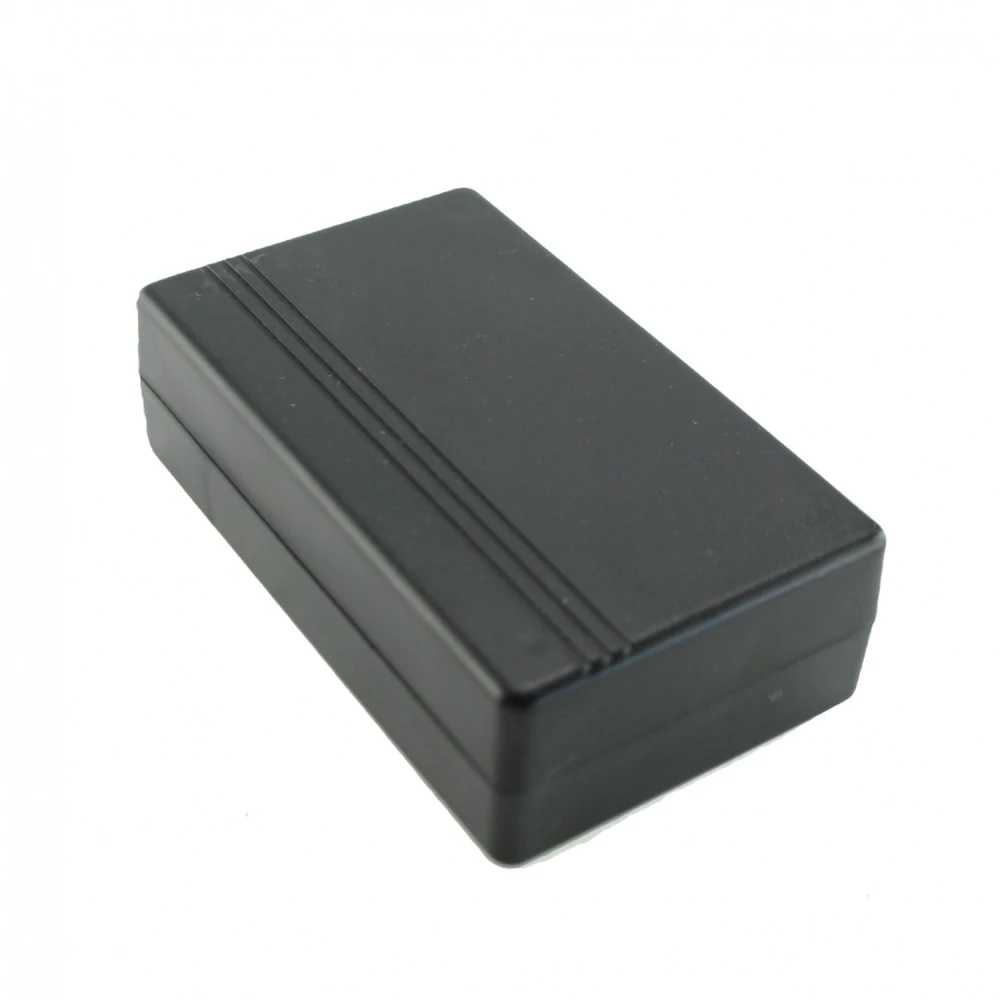

Yes, the case includes the screws needed for closure; they are usually steel, Phillips type, plastic-thread screws, approximately M3 in diameter and between 8 and 12 mm long. This ensures a sealed and repeatable closure for frequent assembly and maintenance.

Impact-resistant polystyrene is used because of its balance of cost, low weight and good rigidity and electrical insulation properties. Compared with ABS or polycarbonate, this material is less resistant to UV rays and high temperatures, but it is more economical and sufficient for indoor applications that do not require extreme protection.

The box has external dimensions of 102 mm x 60 mm x 30 mm, but the usable internal space is approximately 96 mm x 54 mm x 26 mm, taking into account 3 mm walls and some tolerance for the sealed closure system. This calculation may vary slightly depending on the exact model.

When drilling impact-resistant polystyrene, use low-speed drill bits and moderate pressure to avoid cracks. It is recommended to mark the area, hold the box firmly and avoid overheating. Any additional opening will remove the original sealing, so the holes should be sealed with cable glands or a suitable sealant.

Yes, the box includes the screws needed for closing; they are usually steel, Phillips type, plastic-thread screws, approximately M3 in diameter and between 8 and 12 mm long. This ensures a sealed and repeatable closure for frequent assembly and maintenance.

Slagtålig polystyren används tack vare sin balans mellan kostnad, låg vikt och goda egenskaper för styvhet och elektrisk isolering. Jämfört med ABS eller polykarbonat är materialet mindre motståndskraftigt mot UV-strålning och höga temperaturer, men det är billigare och tillräckligt för inomhusapplikationer som inte kräver extremt skydd.

Lådan har yttermåtten 102 mm x 60 mm x 30 mm, men det användbara invändiga utrymmet är ungefär 96 mm x 54 mm x 26 mm, med hänsyn till 3 mm väggar och viss tolerans för den täta förslutningen. Denna beräkning kan variera något beroende på exakt modell.
