Medidor de flujo sobrante de inyectores diesel common rail TSX TOOL

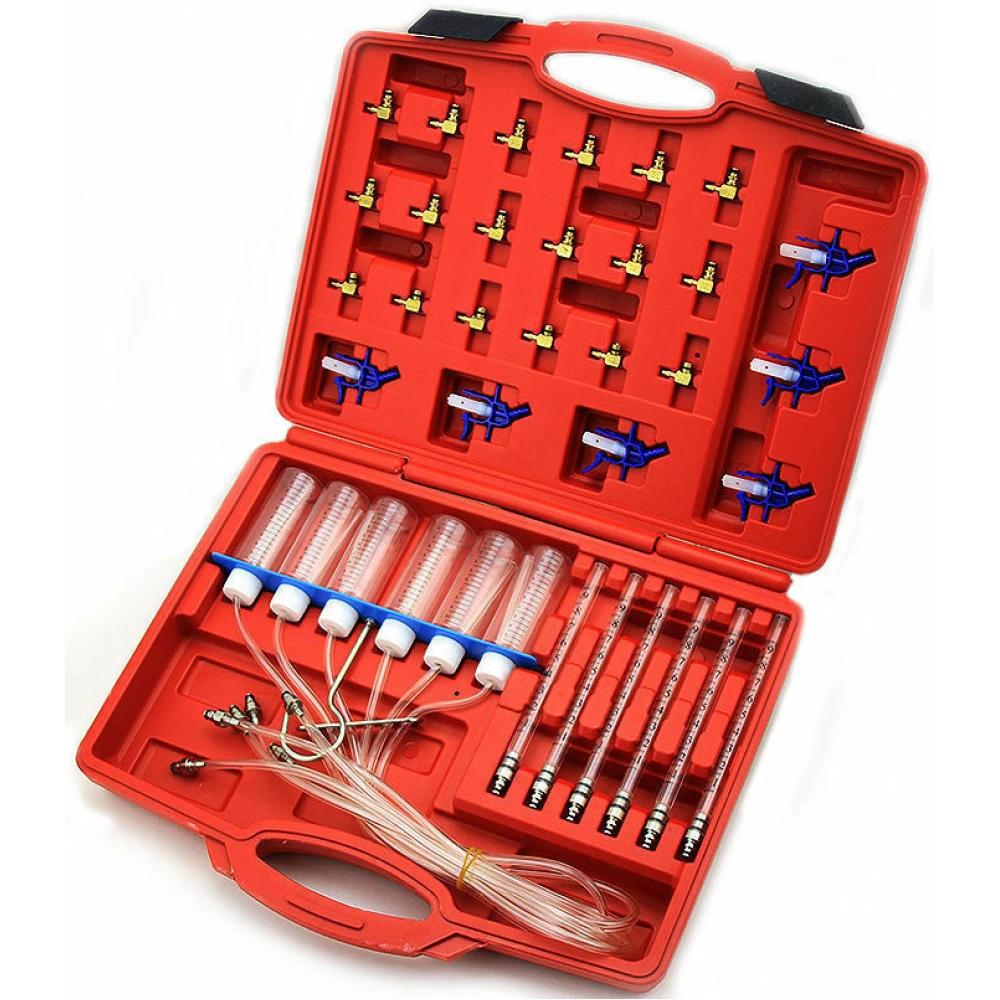

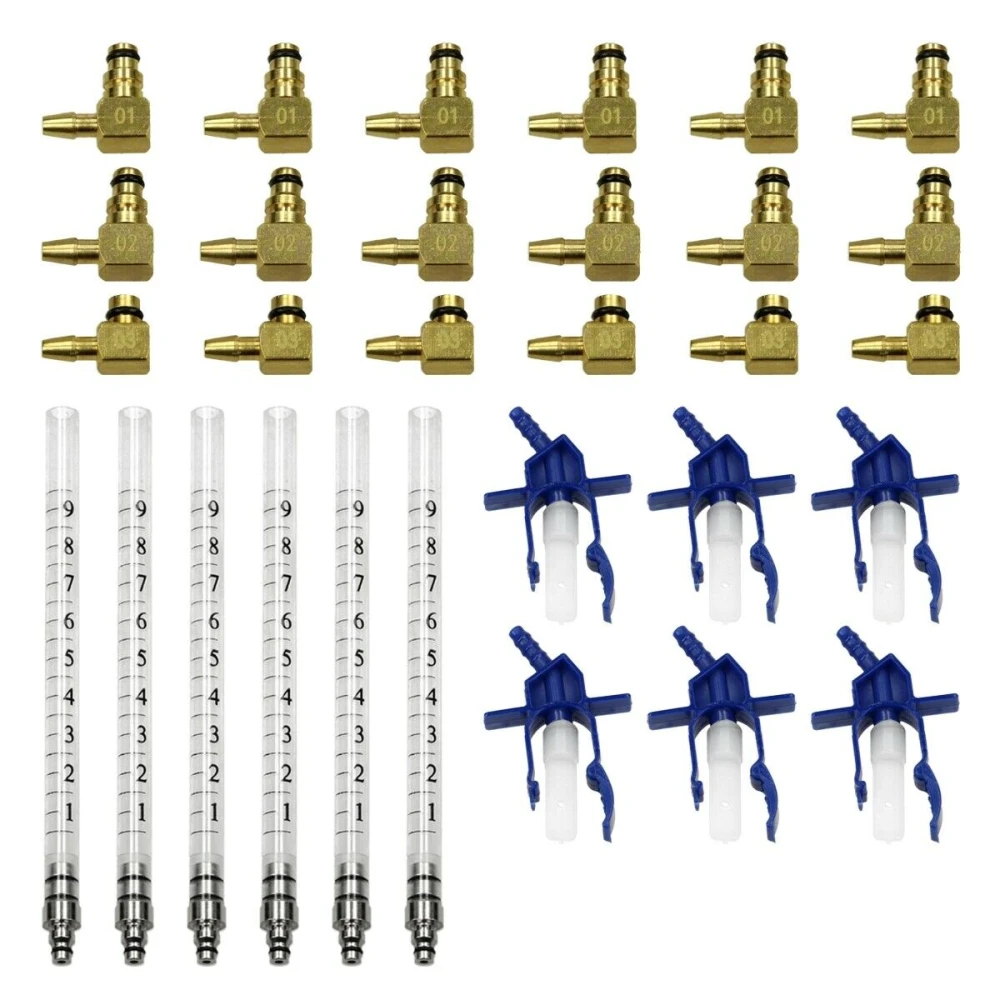

El set inclou vasos mesuradors i flascons de polipropilè, mànegues flexibles de PVC i adaptadors de plàstic tècnic. Aquests materials resisteixen combustibles Diesel i neteges amb solucions sabonoses suaus. La barra suport és d’alumini anoditzat per reduir la corrosió. Es recomana buidar i netejar els elements plàstics després de cada ús per allargar-ne la vida útil; el conjunt està pensat per a múltiples cicles sense una degradació funcional significativa sota ús estàndard de taller.

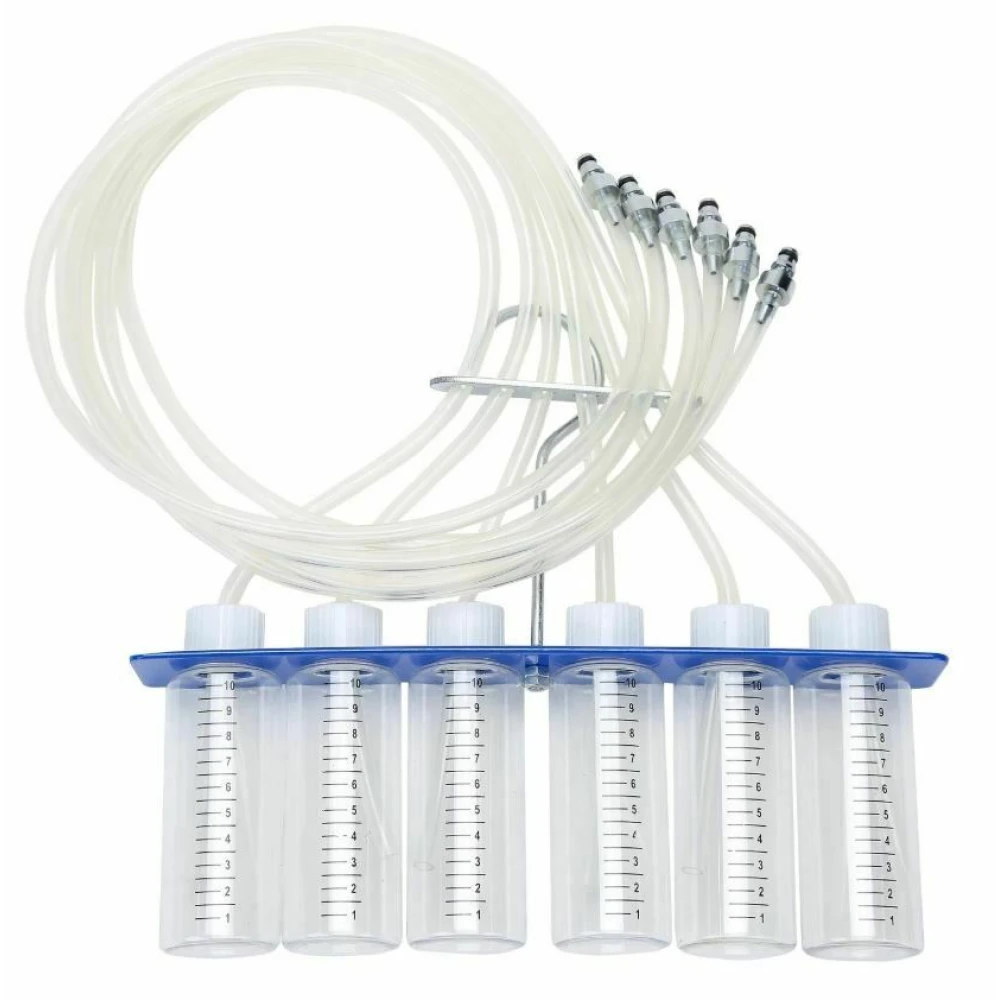

Amb el motor aturat i fred, desconnecteu els retorns dels injectors i col·loqueu els adaptadors apropiats (indiqueu la marca de cada injector). Fixeu la barra d’alumini sobre el vano motor i pengeu els flascons. Connecteu les mànegues i verifiqueu l’estanquitat. Engegueu el motor i observeu els ompliments: valors desiguals indiquen possibles fallades. Atureu el motor abans de desmuntar, fent servir guants per evitar el contacte amb el Diesel. Seguiu sempre les recomanacions de seguretat pel risc inflamable.

Aquest model manual destaca per la simplicitat, la portabilitat (no requereix electricitat) i el baix manteniment, i permet un diagnòstic efectiu en taller o al camp. Els sistemes digitals/sensoritzats ofereixen precisió absoluta (resolucions mil·limètriques i registre electrònic de dades), però requereixen equips costosos i calibratge periòdic. Per diagnosticar desequilibris relatius entre injectors en motors de fins a 6 cilindres, la diferència pràctica és mínima; la lectura absoluta de cabal o integracions complexes només s’aconsegueix amb banc.

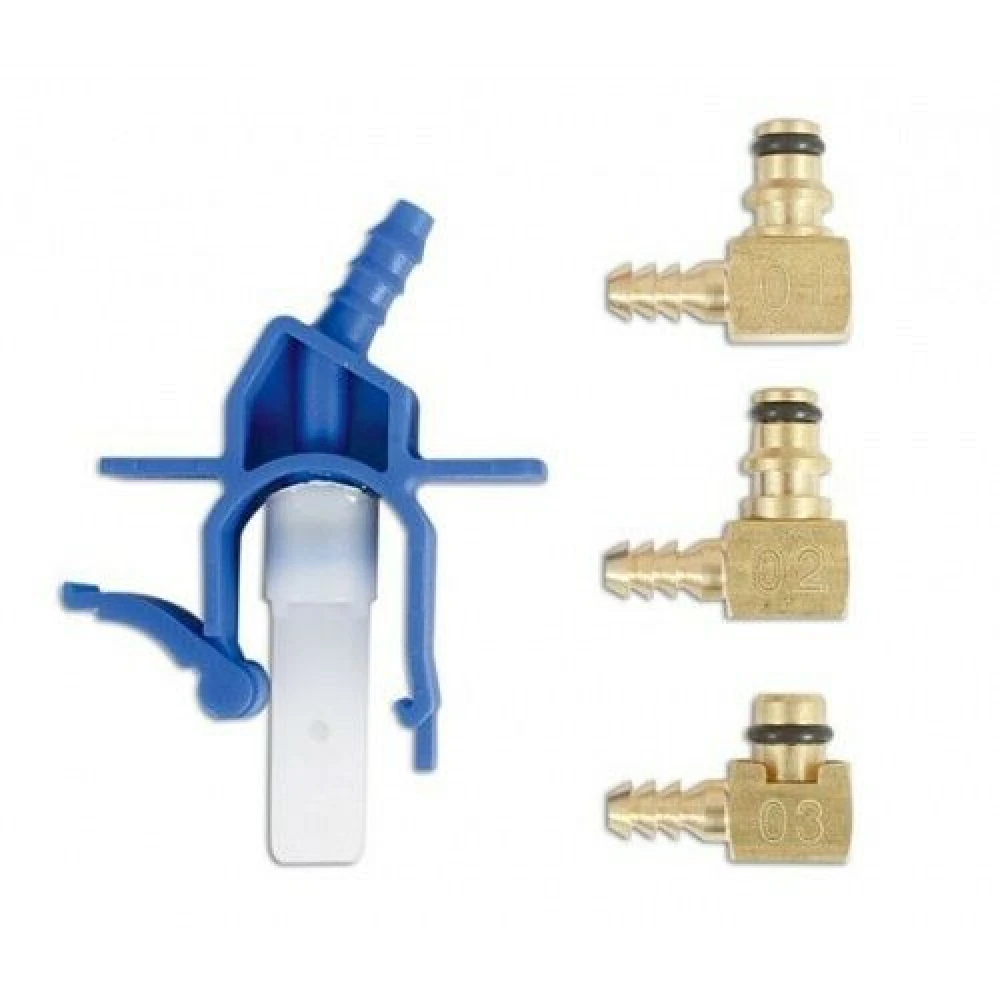

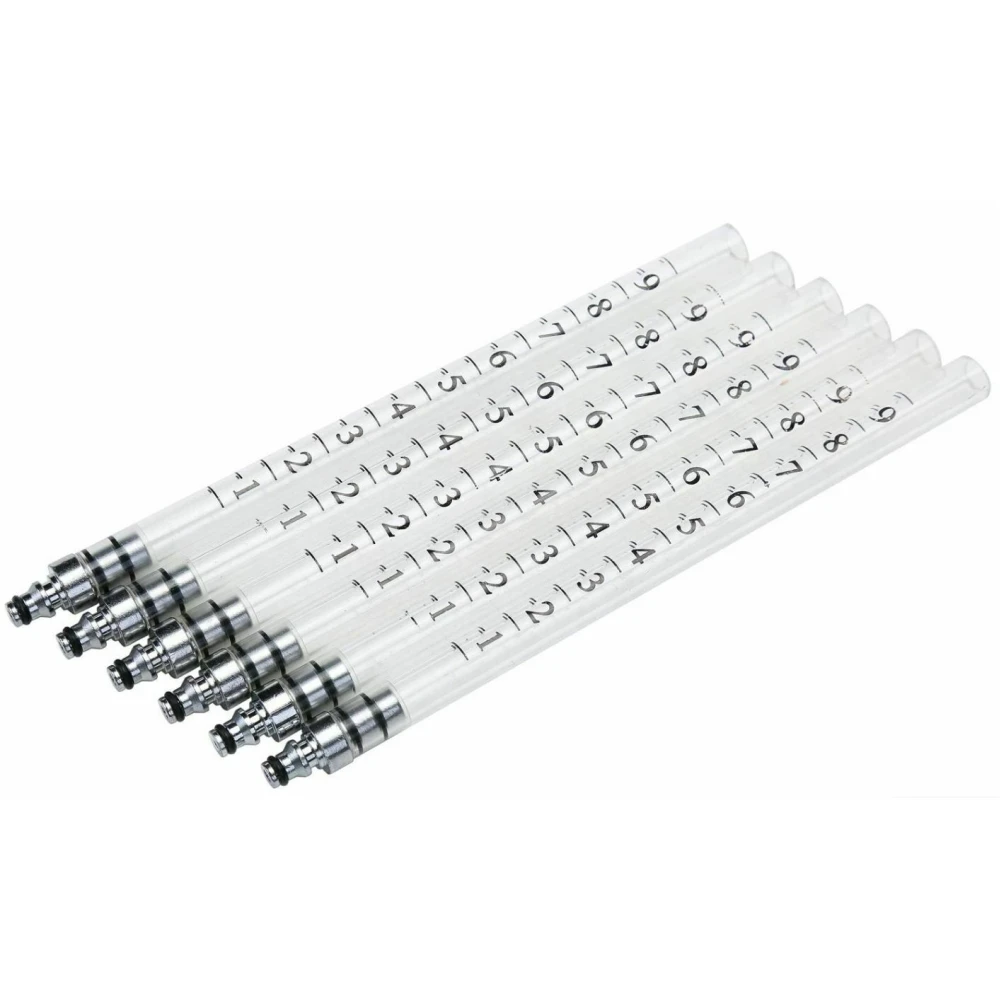

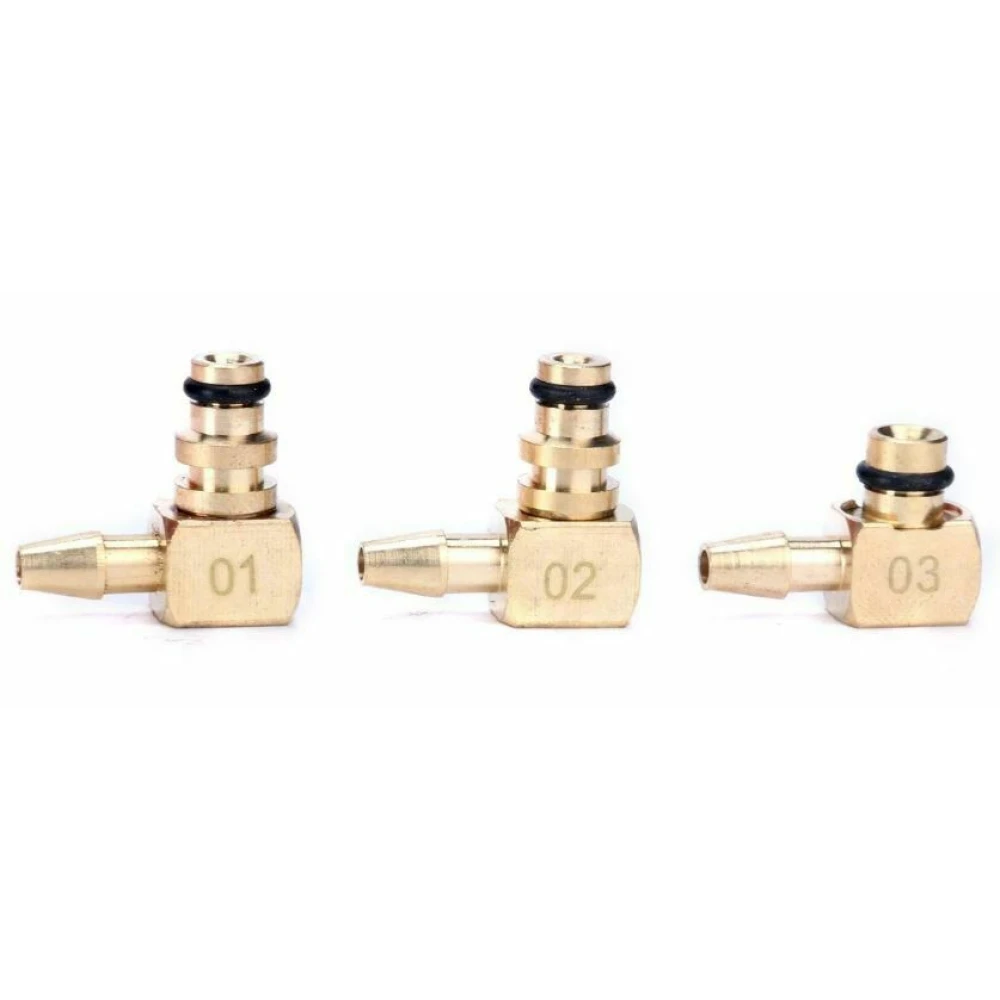

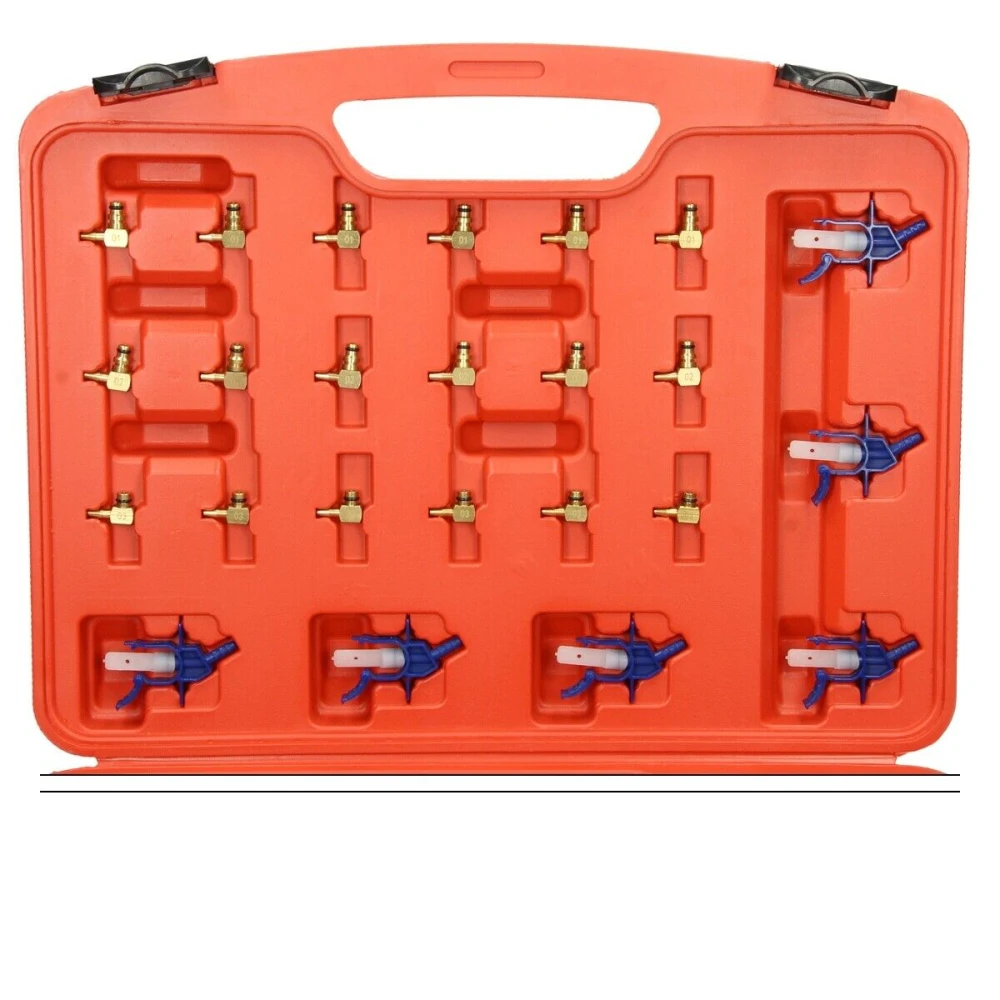

Aquest kit proporciona mesuraments simultanis i comparatius en fins a 6 injectors, permetent identificar variacions anòmales de manera ràpida i precisa. A diferència dels mètodes casolans, cada adaptador és específic per a Bosch, Siemens, Delphi i Denso, minimitzant fuites i errors de connexió. A més, els seus vasos mesuradors calibrats (94 ml) ofereixen una repetibilitat superior a solucions improvisades, facilitant diagnòstics fiables i evitant residus de combustible fora de recipients controlats.

The set includes measuring cups and jars made from polypropylene, flexible PVC hoses and technical plastic adapters. These materials are resistant to Diesel fuel and to cleaning with mild soapy solutions. The support bar is made from anodised aluminium to reduce corrosion. It is recommended to empty and clean the plastic parts after each use to extend their service life; the set is designed for multiple cycles without significant functional degradation under standard workshop use.

With the engine stopped and cold, disconnect the injector return lines and fit the appropriate adapters (state the brand of each injector). Secure the aluminium bar over the engine bay and hang the jars. Connect the hoses and check for leaks. Start the engine and observe the fill levels: uneven readings indicate possible faults. Stop the engine before dismantling, using gloves to avoid contact with Diesel. Always follow safety recommendations due to the flammable risk.

This manual model stands out for its simplicity, portability (no electricity required) and low maintenance, allowing effective diagnosis in the workshop or in the field. Digital/sensor-based systems offer absolute precision (millimetre-level resolution and electronic data logging), but require expensive equipment and periodic calibration. For diagnosing relative imbalances between injectors in engines up to 6 cylinders, the practical difference is minimal; absolute flow measurement or complex analysis is only achieved with a test bench.

This kit provides simultaneous comparative measurements on up to 6 injectors, allowing abnormal variations to be identified quickly and accurately. Unlike DIY methods, each adapter is specific to Bosch, Siemens, Delphi and Denso, minimising leaks and connection errors. In addition, its calibrated measuring cups (94 ml) offer greater repeatability than improvised solutions, making reliable diagnostics easier and avoiding fuel residue outside controlled containers.

This kit provides simultaneous, comparative measurements on up to 6 injectors, allowing abnormal variations to be identified quickly and accurately. Unlike DIY methods, each adapter is specific to Bosch, Siemens, Delphi and Denso, minimising leaks and connection errors. In addition, its calibrated measuring cups (94 ml) offer better repeatability than improvised solutions, making reliable diagnostics easier and avoiding fuel residue outside controlled containers.

The set includes polypropylene measuring cups and jars, flexible PVC hoses and technical plastic adapters. These materials are resistant to Diesel fuel and to cleaning with mild soapy solutions. The support bar is made from anodised aluminium to reduce corrosion. It is recommended to empty and clean the plastic parts after each use to extend their service life; the set is designed for multiple cycles without any significant functional degradation under standard workshop use.
