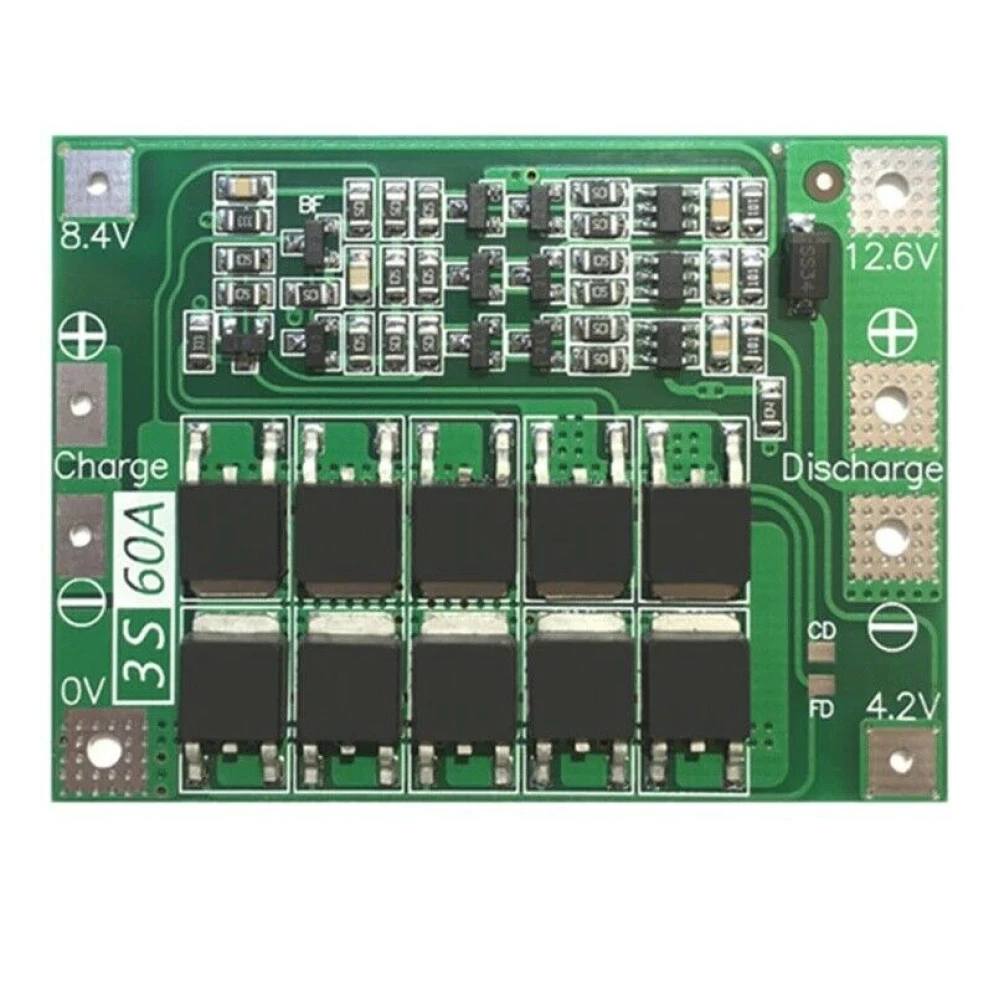

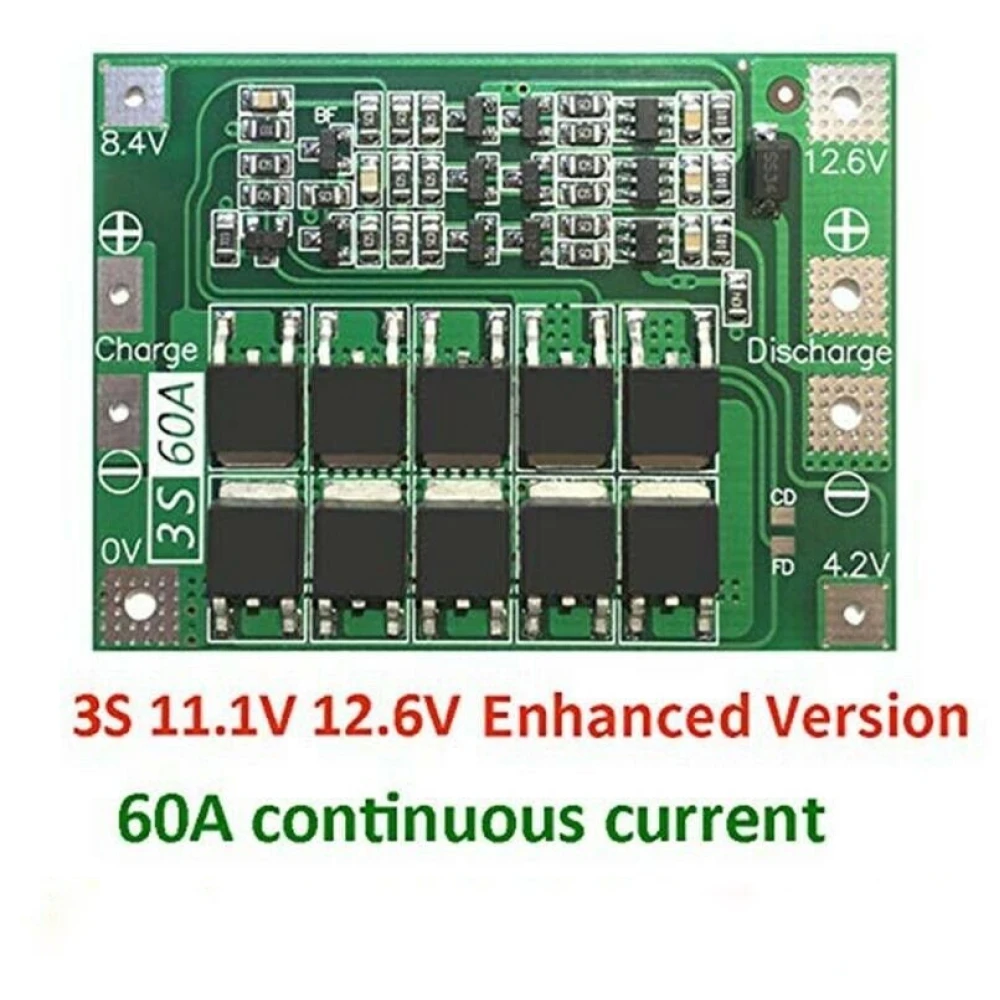

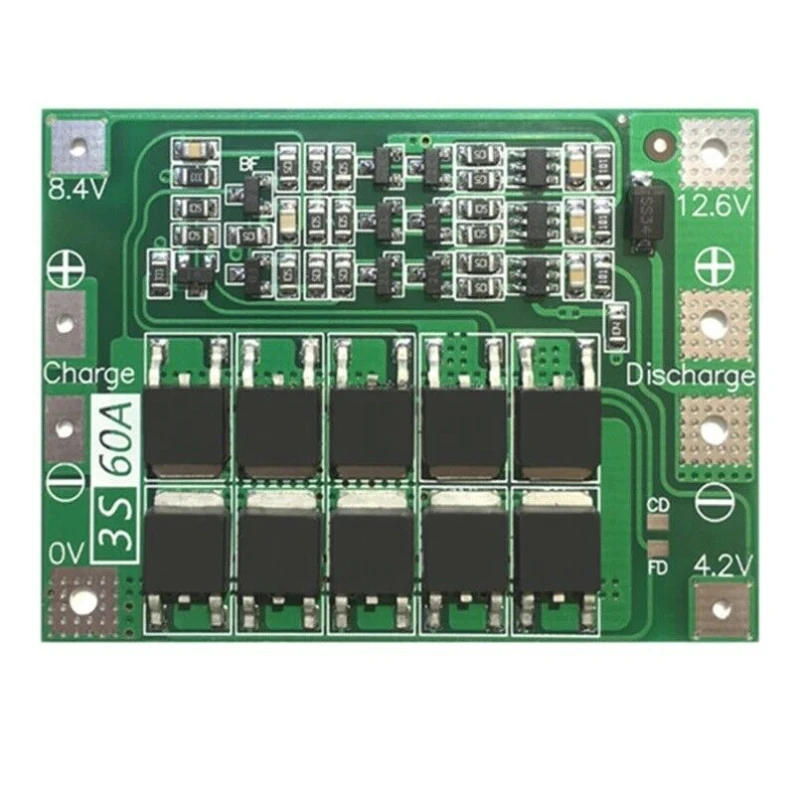

Placa de protección PCB 3S 60A para batería de litio versión mejorada

La placa mesura 41 mm x 55 mm x 3.4 mm. El pes típic oscil·la entre 8 i 12 g segons el fabricant. La caixa inclou una sola unitat de la placa PCB 3S 60A versió millorada, sense cables ni accessoris addicionals.

Sí, cal soldar els terminals respectant el diagrama de connexió: 0V, 4.2V, 8.4V i 12.6V, i evitar curtcircuits accidentals. Per a un arrencada òptima, es recomanen bateries de potència mínima 15C–20C (tres unitats) o bé 10C–15C (sis unitats en paral·lel). Un condensador no polar de 25 V/10–100 μF a la sortida pot ser recomanable per a pics inversos.

La placa suporta una corrent de descàrrega contínua màxima de 60 A per a sistemes amb refrigeració adequada. Sense ventilació suficient podria escalfar-se en excés, per la qual cosa es recomana no superar 40–45 A de manera sostinguda en ambients tancats. El rang operatiu segur és de 0 a 60 °C. Superar aquests límits podria activar la protecció tèrmica o degradar la vida útil.

The board measures 41 mm x 55 mm x 3.4 mm. Typical weight ranges from 8 to 12 g depending on the manufacturer. The box includes one unit of the improved 3S 60A PCB board only, with no cables or additional accessories.

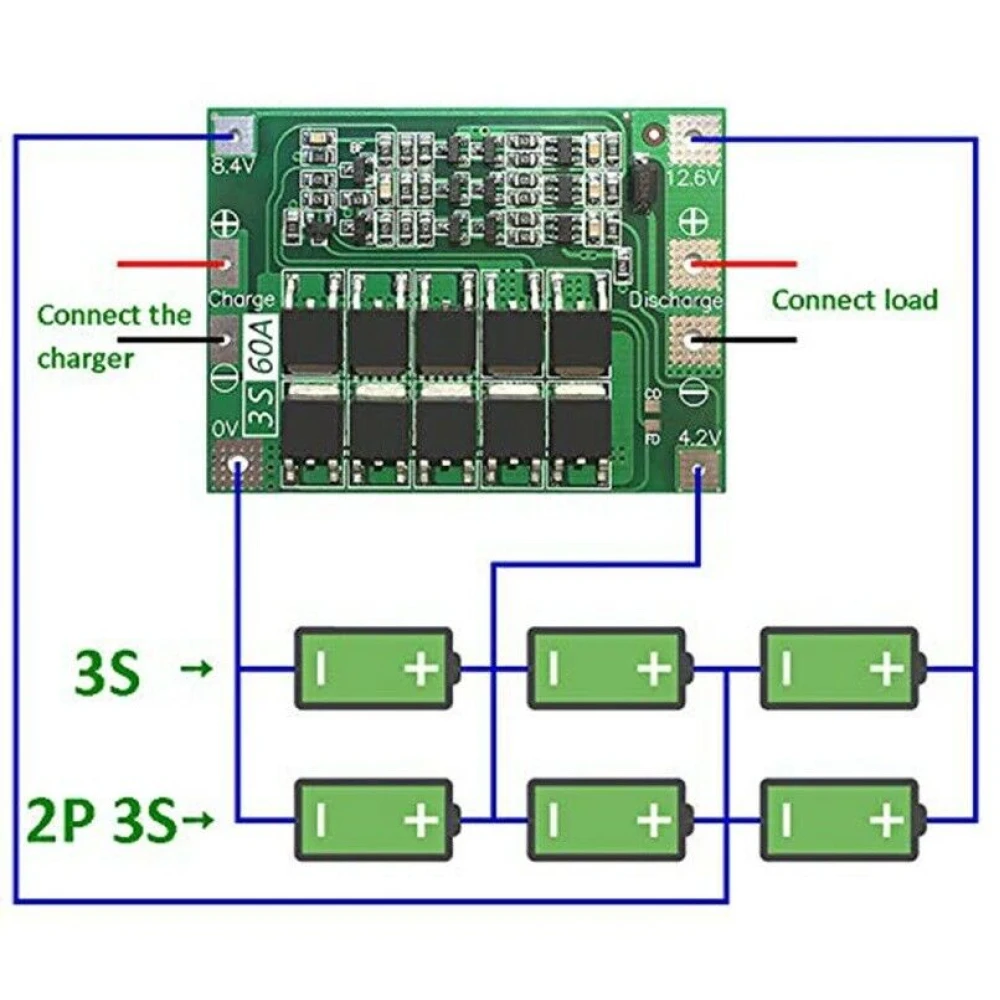

Yes, the terminals must be soldered following the connection diagram: 0V, 4.2V, 8.4V and 12.6V, and accidental short circuits must be avoided. For optimal start-up, batteries with a minimum rating of 15C-20C (three units) or 10C-15C (six units in parallel) are recommended. A 25 V / 10-100 µF non-polar capacitor on the output may be advisable for reverse spikes.

The board supports a maximum continuous discharge current of 60 A for systems with adequate cooling. Without sufficient ventilation it may overheat, so it is recommended not to exceed 40-45 A continuously in enclosed environments. The safe operating range is 0 to 60°C. Exceeding these limits could trigger thermal protection or reduce service life.

The board measures 41 mm x 55 mm x 3.4 mm. The typical weight ranges from 8 to 12 g depending on the manufacturer. The box includes one unit of the improved 3S 60A PCB board, with no cables or additional accessories.

Yes, the terminals must be soldered following the connection diagram: 0 V, 4.2 V, 8.4 V and 12.6 V, and accidental short circuits must be avoided. For optimal start-up, batteries with a minimum 15C–20C rating (three cells) or 10C–15C (six cells in parallel) are recommended. A 25 V / 10–100 μF non-polar capacitor at the output may be advisable to handle reverse spikes.

The board supports a maximum continuous discharge current of 60 A for systems with adequate cooling. Without sufficient ventilation it may overheat, so it is recommended not to exceed 40–45 A continuously in enclosed environments. The safe operating range is 0 to 60 °C. Exceeding these limits could trigger thermal protection or reduce service life.

Kortet mäter 41 mm x 55 mm x 3,4 mm. Den typiska vikten ligger mellan 8 och 12 g beroende på tillverkare. Lådan innehåller en enda enhet av PCB 3S 60A förbättrad version, utan kablar eller extra tillbehör.
