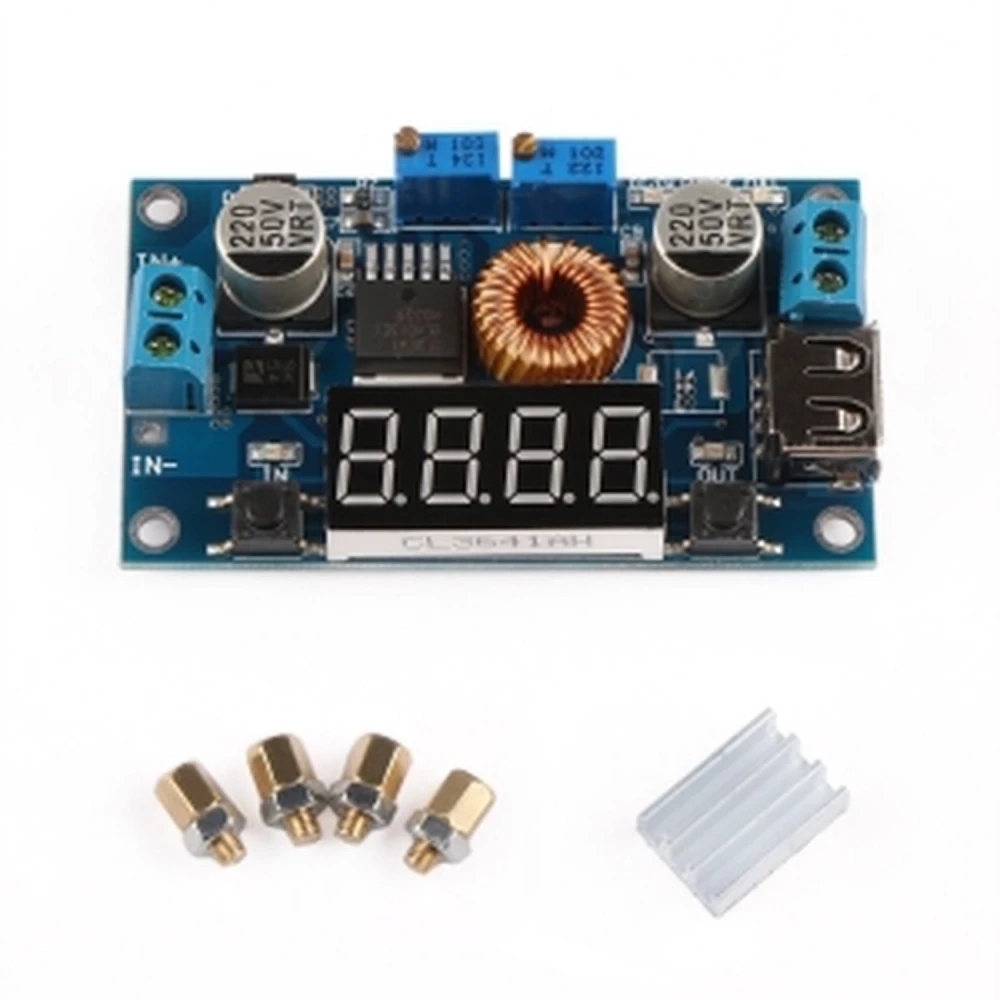

Convertidor DC-DC Regulable 5A 1.25V-32V con Voltímetro y Amperímetro satkit

Aquest convertidor permet ajustar la sortida entre 1.25V i 32V amb un corrent màxim de 5A, cosa que n'incrementa la versatilitat davant dels models de voltatge fix. A més, integra voltímetre i amperímetre digital, facilitant el monitoratge en temps real sense necessitat d'instruments externs, cosa que millora la precisió i el control en aplicacions de laboratori o prototip.

Per a una operació segura i prolongada, manteniu la sortida per sota de 4.5A i 50W continus. Si preveieu càrregues superiors a 3A o 35W, utilitzeu el dissipador de calor inclòs. La temperatura ambient operativa recomanada és entre -40 °C i 85 °C, tot i que un ambient fresc i ventilat augmenta la vida útil.

La precisió mitjana és de ±1% per al voltímetre i aproximadament ±2% per a l'amperímetre en condicions de laboratori. Si es requereix alta precisió, és recomanable calibrar amb instruments certificats, ja que poden presentar-se lleugeres desviacions a causa de toleràncies dels components integrats.

This converter allows the output to be adjusted between 1.25 V and 32 V with a maximum current of 5 A, which makes it more versatile than fixed-voltage models. It also integrates a digital voltmeter and ammeter, making real-time monitoring easier without external instruments, improving accuracy and control in laboratory or prototype applications.

For safe, long-term operation, keep the output below 4.5 A and 50 W continuous. If you expect loads above 3 A or 35 W, use the included heatsink. The recommended operating ambient temperature is between -40 °C and 85 °C, although a cool, ventilated environment will extend service life.

Average accuracy is ±1% for the voltmeter and approximately ±2% for the ammeter under laboratory conditions. If high precision is required, it is advisable to calibrate with certified instruments, as slight deviations may occur due to the tolerances of the integrated components.

This converter allows the output to be adjusted between 1.25 V and 32 V with a maximum current of 5 A, which makes it more versatile than fixed-voltage models. It also integrates a digital voltmeter and ammeter, making real-time monitoring easier without the need for external instruments, improving accuracy and control in laboratory or prototype applications.

For safe and prolonged operation, keep the output below 4.5 A and 50 W continuously. If you expect loads above 3 A or 35 W, use the included heatsink. The recommended operating ambient temperature is between -40 °C and 85 °C, although a cool, ventilated environment will extend service life.

Average accuracy is ±1% for the voltmeter and approximately ±2% for the ammeter under laboratory conditions. If high precision is required, it is advisable to calibrate with certified instruments, as slight deviations may occur due to tolerances in the integrated components.

Denna omvandlare låter dig justera utgången mellan 1,25 V och 32 V med en maximal ström på 5 A, vilket ökar dess flexibilitet jämfört med modeller med fast spänning. Dessutom har den digital voltmeter och amperemeter, vilket gör det enkelt att övervaka i realtid utan externa instrument och förbättrar precisionen och kontrollen i laboratorie- eller prototypapplikationer.
